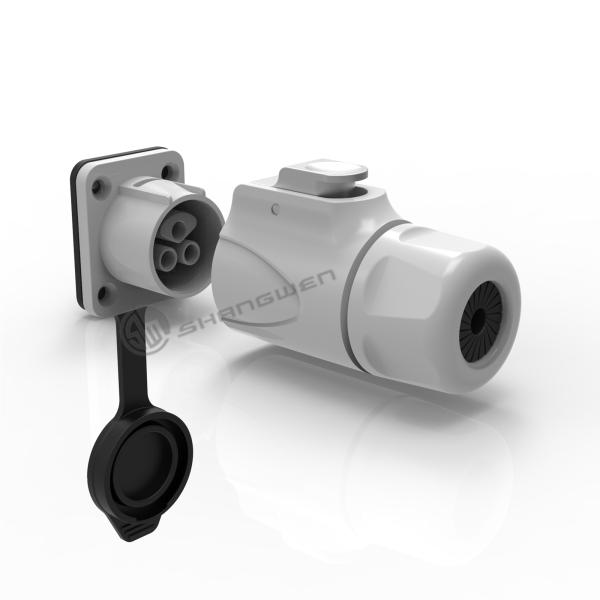

Factory Sales Black Outdoor Use Plastic Waterproof Ip65 Female Powercon Connector
As the name implies, a waterproof connector is an electrical waterproof plug that solders cable wire and connectors together, but in addition to the water resistance of the waterproof plug, ordinary plugs usually include a plug and a socket, which is a major difference. The plug is usually a waterproof plug, which is what we usually call a waterproof male and female plug. They are connected together to form a complete set of waterproof plugs, also known as waterproof connectors, which are two products with different names, such as dedicated bicycles or electric bicycles. Electric scooter induction faucet bike sharing new energy product sensor
Model : SW3AJ-KB ( outdoor use-black )
☑Adopt one key press button locking method,plug and play,fast and convenient;
☑Adopt high-strength structural materials, pressure-resistant structure design,can
withstand greater vibration and shock.
☑High-power industrial waterproof connector - waterproof, moisture-proof and dust proof
☑Precision waterproof design,with high waterproof level,no fear of wading environment;
☑Multi-style inner core design to meet the needs of various industries
☑Black and white in two colors
☑The insulating parts of the shell are high-performance engineering plastics, and the flame retardant grade reaches UL94-V0
☑Protection level: used in outdoor scenes, protection level up to IP65/IP67

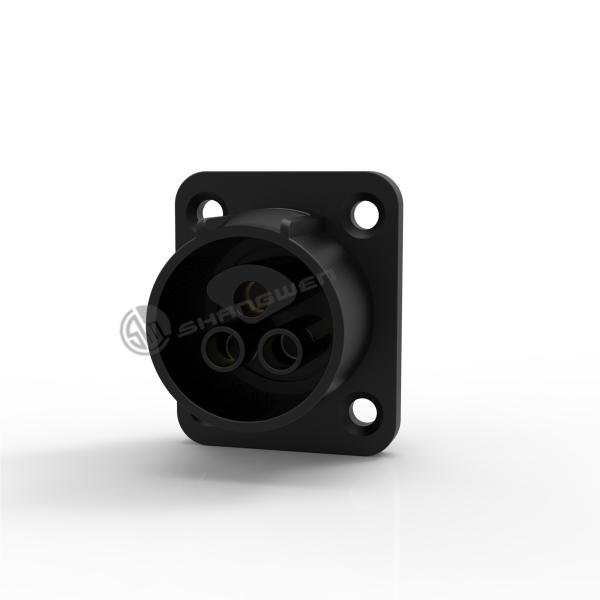

Power connector series-3 core female powercon(card buckle type)
This series is widely used in audio and video connection, lighting, LED display, industrial equipment and other industries.
The enclosure is made of industrial PBT insulation material, which is resistant to pressure, high temperature, corrosion and flame retardant up to UL94-V0.
The inner core is made of copper alloy, which has strong contact stability and can strengthen the control of temperature rise.
The materials used in this series are extremely elegant, and the design of many inner cores meets the diversified industrial needs. Not afraid to apply in all kinds of bad conditions!
| Contacts NO. | Φ2.0* 3 pin |
| Rated current | 20A |
| Rated voltage | 250V AC |
| Contact resistance | ≤4mΩ |
| Withstand voltage | 2500V AC |
| Insulation resistance | ＞1000MΩ |
| Service life | ＞1000 times |
| Power line | 2.5mm²-4mm² |
| Wire stripping length | 7-8mm |
| Type of terminals | Soldering |
3.Material and environmental parameters
| Shell&insulated parts | PBT |
| Contacts | Brass with gold-plated |
| Sealing | Silicone/rubber |
| Flame-retardant grade | UL94-V0 |
| Temperature range | -30°C to +80°C |
| Temperature rise | Temperature rise < 30º at 20A, < 40º at 25A, < 50º at 30A |
| Protection level | IP65 |
4.Size reference (unit /mm)
5.Installation reference drawing
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.
2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.
3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.
4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.
5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.
6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
